Adaptive smoothing in mgcv

Author

David L Miller

When we set-up a smoother in a GAM, we have a penalty that is of the following matrix form: \[\begin{equation} \lambda \boldsymbol{\beta}^\intercal \mathbf{S} \boldsymbol{\beta}. \label{pen} \end{equation}\] where we have the fixed elements (usually integrals of derivatives of the basis functions) in \(\mathbf{S}\) and the smoothers’ coefficients in \(\boldsymbol{\beta}\). \(\lambda\) is the smoothing parameter which we also estimate and controls the influence of the penalty on the fit (usually, we have the above expression subtracted from the restricted or marginal likelihood for REML or ML).

The smoothing parameter, \(\lambda\), tells us about how wiggly to make our functions. A \(\lambda\) of 0 will mean that the whole penalty term is evaluated as zero, meaning the smother will overfit to the data. Letting \(\lambda\) get larger and larger, we end up with the penalty dominating the fit. In that case we retrieve only the nullspace terms: those bits of the basis which don’t have derivatives (so aren’t affected by the penalty). This is shown in Figure 1.

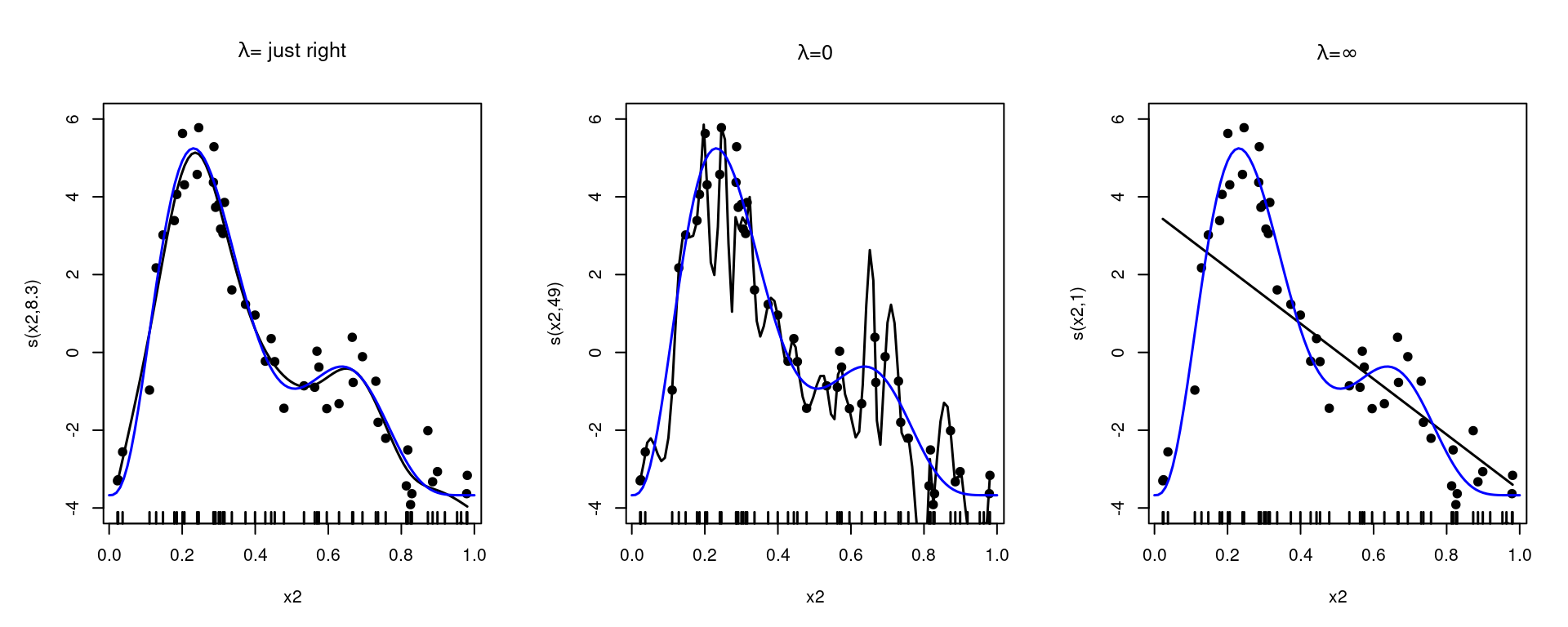

Figure 1: Data (black dots) are generated from the blue line. In the left plot we have \(\lambda\) be estimated. The middle plot shows that when the smoothing parameter is set to zero we get overfitting since the model is unpenalized. The right plot shows what happens when the penalty dominates and all the wiggles are removed from the model, leaving only the slope term which doesn’t have second derivatives (which are used for the penalty in this case).

This all works well in general, up to a point. What happens when the amount of smoothing we need changes with the covariate? In other words: what if we need the amount of smoothing to be adaptive?

Most of this is based off Sections 5.33 and 5.3.5 of Wood (2017a) as well as the ?smooth.construct.ad.smooth.spec manual page, with a bit more explanation. See the last section for links to other approaches.

An overused example: motorcycle crash data

Every expanation of adaptive smoothing uses the same tired example. This article is no different. The “simulated motorcycle crash data” found in MASS::mcycle seems to originate (in the statistics literature) in Silverman (1985) (which is a great paper!). The data originally come from a rather grim experiment (Schmidt et al., 1981)1 where cadavers were given helments and hurled at walls to see what happens on impact. For our purposes, we are interested in the accelaration change recorded on sensors on the helmet. We see the data in Figure 2.

library(MASS)
library(ggplot2)
library(patchwork)

ggplot(mcycle) +
  geom_point(aes(x=times, y=accel)) +
  labs(x="Time (ms)", y="Acceleration (g)") +
  theme_minimal()

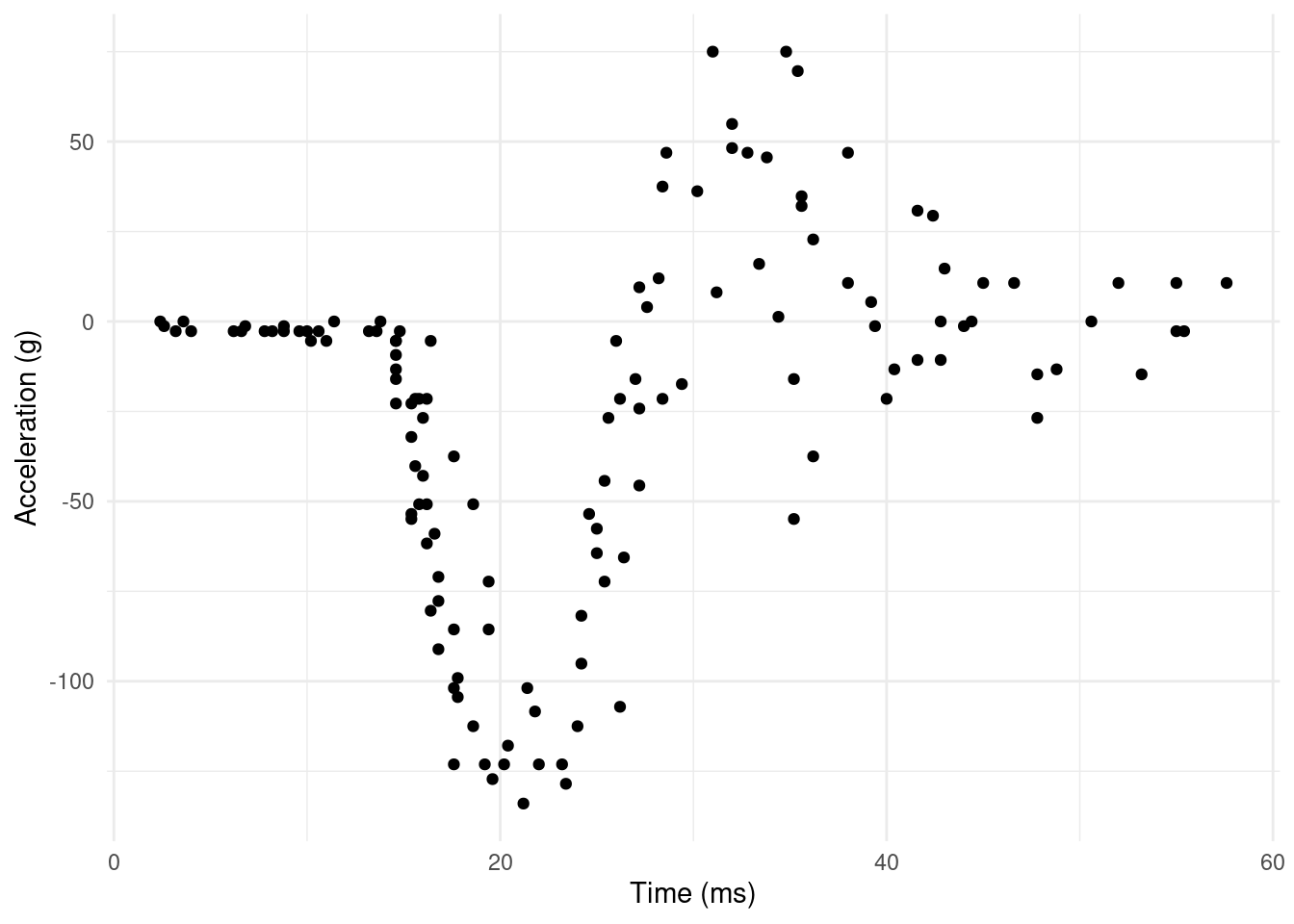

Figure 2: The “motorcycle data”. These show the acceleration felt by sensors on the helmets of cadavers as they make impact with a wall.

From a smoothing perspective, the data are interesting because there are clearly different variances at different times. We see a very flat start up to the impact, followed by rapid decelleration, then rebound to acceleration, then movement back to the zero line again (but with much more spread).

We can fit the data using a regular smoother and see what happens:

library(mgcv)

b <- gam(accel ~ s(times), data=mcycle)

I’ll write a little plotting function to make life easier

# plotting function
plot_mpreds <- function(model){
  # prediction grid
  xx <- data.frame(times = seq(0, 60, length.out=400))
  # make the predictions
  pp <- predict(model, newdata=xx, se=TRUE)

  # add predictions to the grid
  xx$accel <- as.vector(pp$fit)
  # approximate confidence bands
  xx$upper <- as.vector(pp$fit + 1.96*pp$se.fit)
  xx$lower <- as.vector(pp$fit - 1.96*pp$se.fit)

  # create the plot itself
  ggplot() +
    geom_point(aes(x=times, y=accel), data=mcycle) +
    geom_ribbon(aes(x=times, ymin=lower, ymax=upper),
                colour="grey60", alpha=0.5,
                data=xx) +
    geom_line(aes(x=times, y=accel), data=xx) +
    labs(x="Time (ms)", y="Acceleration (g)") +
    theme_minimal()
}

plot_mpreds(b)

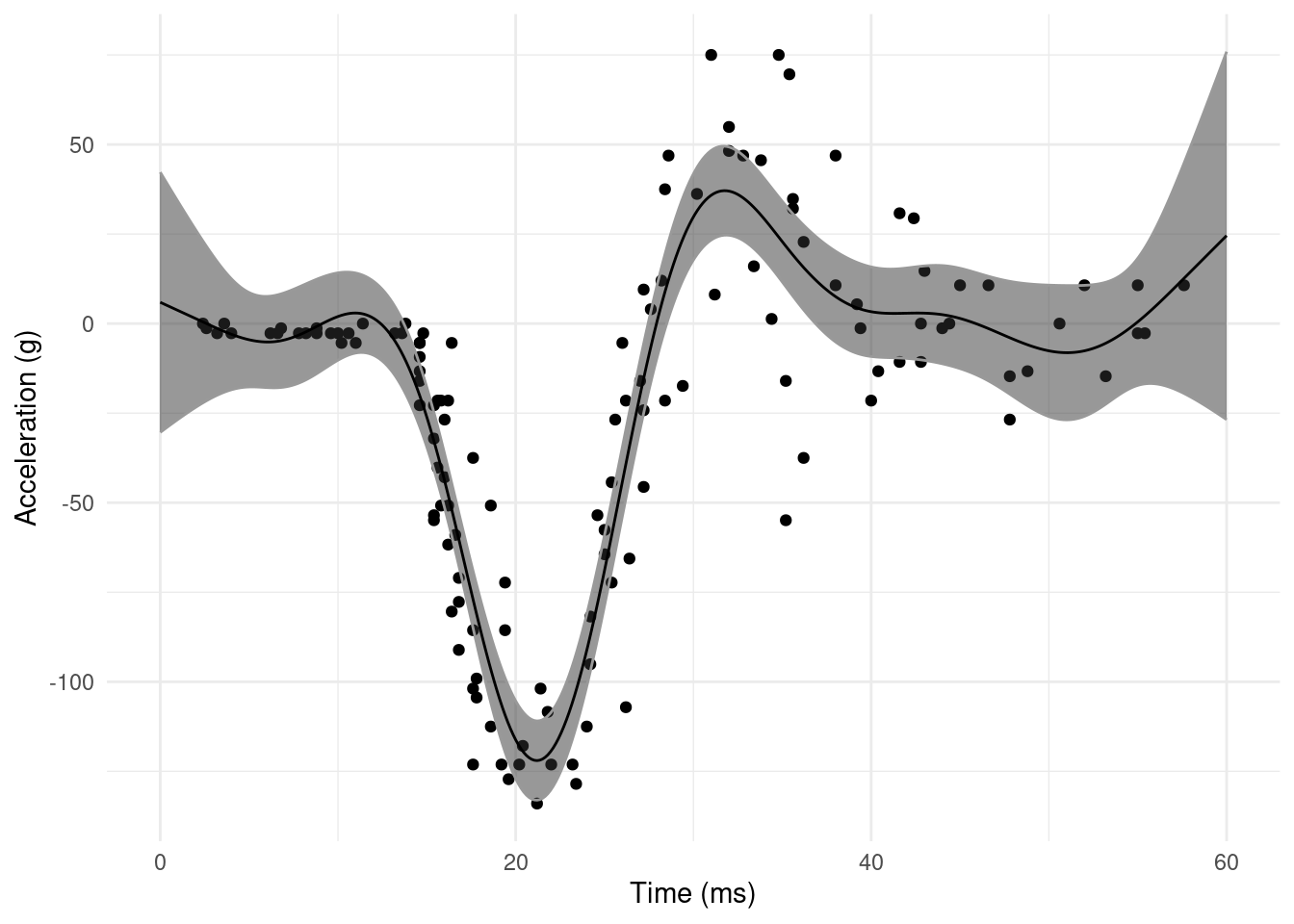

What we see in this simple fit is some annoying misbehaviour in the extremes of the data. Why is the smoother decreasing from zero, only to increase again before impact? At the other end, why do we see such wiggly behaviour followed by increase? These features aren’t supported by the data.

This is really down to the smoothing parameter being optimized for the bulk of the data, which is quite wiggly (and where we fit well). We are stuck with the \(\lambda\) which does best “on average”, so our model sucks at either end of the data.

But, what if we could make \(\lambda\) a function of the time covariate?

Adaptive smoothing: tools we need

In the case above, we might imagine the case where we want to use, say, three smoothing parameters. Looking at Figure 3, we think we see a change in the amount of smoothing necessary at say 14ms (up to impact) and then again at 41ms (after rebound).

ggplot(mcycle) +
  geom_point(aes(x=times, y=accel)) +
  geom_vline(xintercept=14, lty=2) +
  geom_vline(xintercept=41, lty=2) +
  labs(x="Time (ms)", y="Acceleration (g)") +
  theme_minimal()

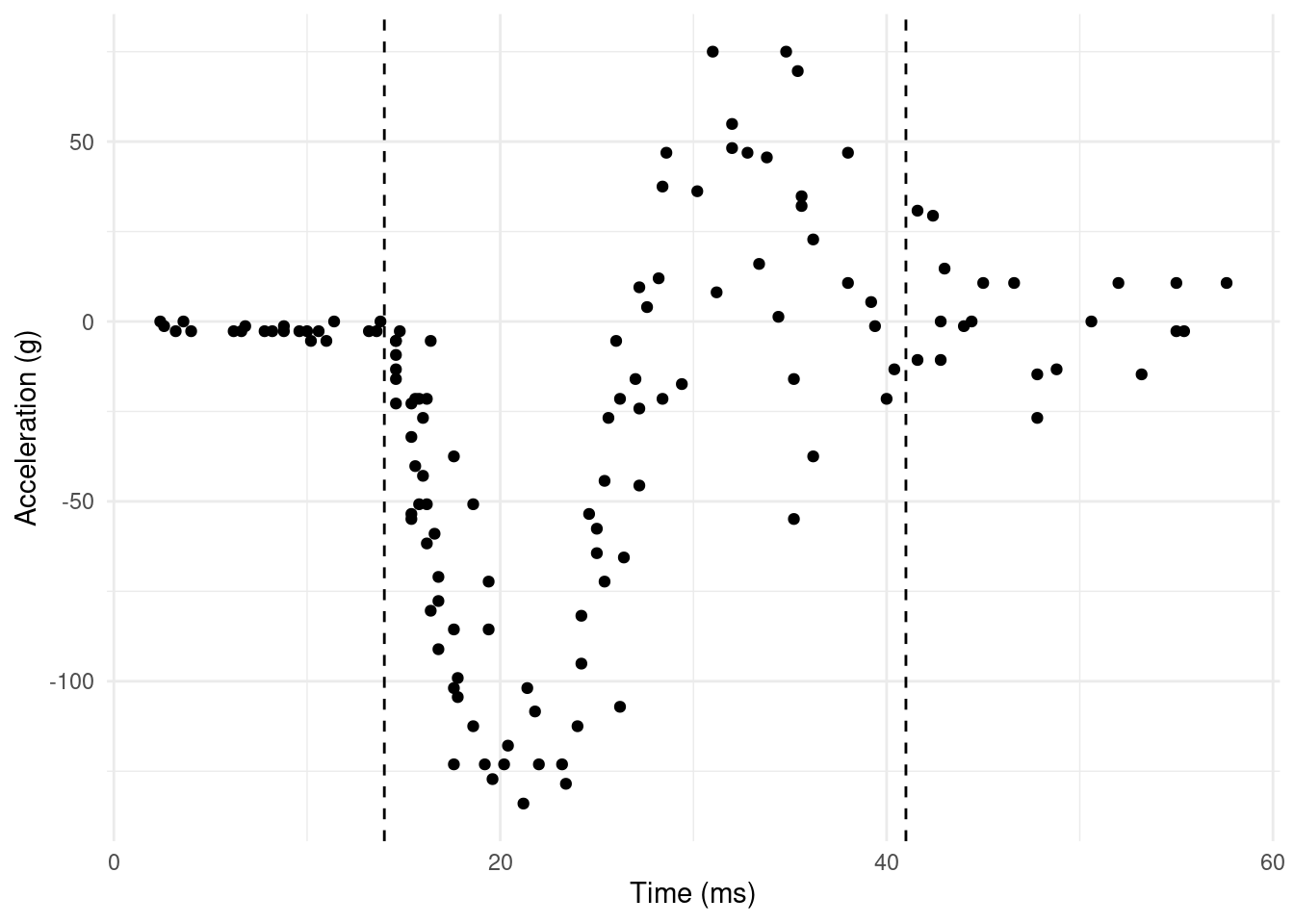

Figure 3: Where we might have differing smoothing in the “motorcycle data”.

Obviously it would be better to estimate this from the data rather than coming up with arbitrary cut-offs. To do that we’re going to need some generic tools…

Multiple penalties

First we need to build a penalty for such a term. We can extend \(\eqref{pen}\) to the case where we have multiple penalties for a single term. In which case we write \[\begin{equation} \sum_j \lambda_j \boldsymbol{\beta}^\intercal \mathbf{S}_j \boldsymbol{\beta}. \label{multpen} \end{equation}\] This idea should be fairly familiar as it’s how we create the total penalty for models with multiple terms.

P-splines

We need a basis to build our terms. For efficiency and interpretability purposes, mgcv uses P-splines2 (Eilers and Marx, 1996) by default to construct adaptive smoothers (see below for other options). Since they’re a bit different from other splines, let’s just review them for a moment.

“P-splines” in the sense used in mgcv are Marx and Eiler’s “B-splines”: they are a B-spline basis with a “difference” penalty (rather than an integral penalty). This makes things much faster for computation.

B-spline basis

The B-spline basis is an interesting and useful one. We setup the basis functions by recursion, so an order \(m+1\) basis function is to multiply some fixed thing (which we’ll avoid writing-out here because I don’t think it adds much to the explanation) by the \(m^\text{th}\) order basis function. The \(-1^\text{th}\) order basis functions are just 1 inside a range and 0 outside.

We place the B-spline basis at knots (the knot is the centre of the basis function) and a basis function of order \(m+1\) (where \(m=2\) is a cubic spline, for boring definitional reasons) will be non-zero over the \(m+3\) adjacent knots. This, along with the regular placement of knots (more on that in a moment) means that B-splines are a local basis (that their effects are felt only in the vicinity of their knot). This makes them easy to interpret (compared to, say, thin plate splines). Figure 4 shows some cubic B-spline basis functions.

# taken from Wood (2017)
bspline <- function(x,k,i,m=2){
# evaluate ith b-spline basis function of order m at the values
# in x, given knot locations in k
  if (m==-1){ # base of recursion
    res <- as.numeric(x<k[i+1]&x>=k[i])
  }else{
    # construct from call to lower order basis
    z0 <- (x-k[i])/(k[i+m+1]-k[i])
    z1 <- (k[i+m+2]-x)/(k[i+m+2]-k[i+1])
    res <- z0*bspline(x,k,i,m-1)+ z1*bspline(x,k,i+1,m-1)
  }
  res
}

# knot locations
nk <- 16
knts <- seq(-0.5, 1.5, length.out=nk)
# grid for evaluation
xx <- seq(0, 1, length.out=200)

plot(c(0,1), c(0, 0.7), type="n",
     xlab="x", ylab="b(x)")

for(i in 1:nk){
  lines(xx, bspline(xx, knts, i, 2), lty=2)
}

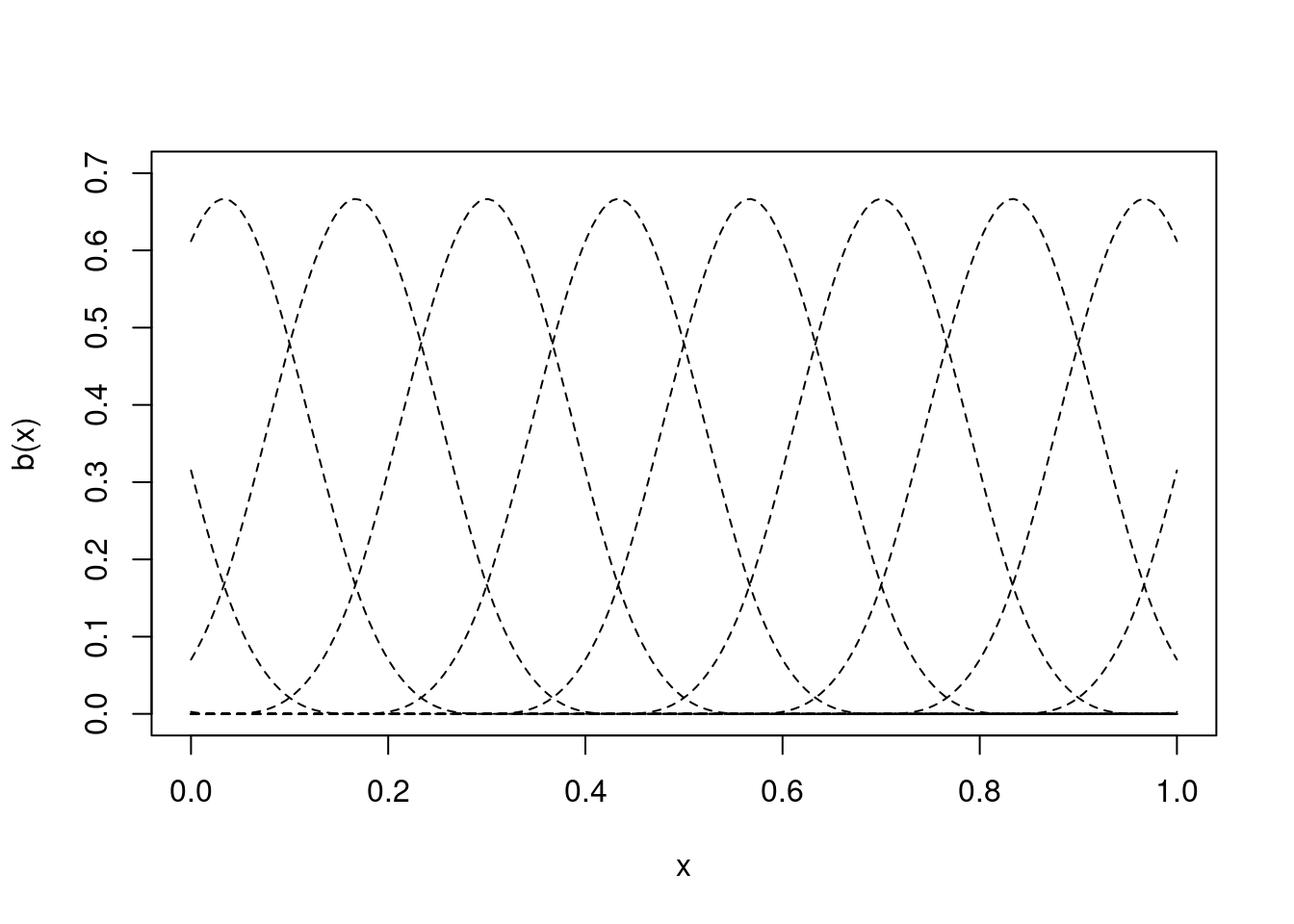

Figure 4: A B-spline basis.

More in-depth information on B-splines can be found in classic texts like DeBoor (1978). For more on their implementation in mgcv you can see Section 5.3.3 of Wood (2017a) and Wood (2017b).

P-spline difference penalties

Now we could use the regular formulation to create a penalty for these P-splines: we can take derivatives and integrate over the range of the covariate. Instead, we can do something a bit faster and more efficient. This speed an efficiency comes at a cost of accuracy, but this often doesn’t matter much.3

Rather than the derivative-based penalties we usually use for splines, we’re going to use a difference-based penalty. Where the differences are between the neighbouring \(\beta\)s in the model.

The first order P-spline penalty is \[\begin{equation} \mathcal{P}_1 = \sum_{k=1}^K (\beta_{k+1}-\beta_k)^2 \label{bs-firstorder-pen} \end{equation}\] where we have \(K\) basis functions (or knots if you think about the world that way). Note we still square the difference, just as we do in a derivative-based penalty.

We can re-write \(\eqref{bs-firstorder-pen}\) in matrix-form by writing a matrix \(\mathbf{P}\) such that: \[ \mathbf{P} = \pmatrix{-1 & 1 & 0 & 0 & 0 & \cdots\\ 0 & -1 & 1 & 0 & 0 & \cdots\\ 0 & 0 & -1 & 1 & 0 & \cdots\\ & & & \ddots & \ddots & & } \] which just reflects the \(\beta_{k+1}-\beta_k\) term, taking the previous value away from the current one. Indeed, \[ \mathbf{P}\boldsymbol{\beta} = \pmatrix{\beta_2-\beta_1\\ \beta_3-\beta_2\\ \beta_4-\beta_3\\ \vdots}, \] and in order to get our penalty \(\mathcal{P}_1\), we just need to take the product \(\mathbf{P}^\intercal \mathbf{P}\) \[ \mathcal{P}_1 = \boldsymbol{\beta}^\intercal \mathbf{P}^\intercal \mathbf{P}\boldsymbol{\beta} = \sum_{k=1}^K (\beta_{k+1}-\beta_k)^2. \]

Our 2nd order penalty is \[\begin{equation} \mathcal{P}_2 = \sum_{k=1}^K (\beta_{k-1} -2\beta_k +\beta_{k+1})^2 \label{bs-secondorder-pen} \end{equation}\] which gives us the following \(\mathbf{P}\) matrix: \[ \mathbf{P} = \pmatrix{1 & -2 & 1 & 0 & 0 & \cdots\\ 0 & 1 & -2 & 1 & 0 & \cdots\\ 0 & 0 & 1 & -2 & 1 & \cdots\\ & & & \ddots & \ddots &\ddots & }. \]

Now, these matrices are extremely fast to compute in R, because we just need to use the diff function on a diagonal matrix:

(P1 <- diff(diag(10), differences=1))
      [,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] [,10]
 [1,]   -1    1    0    0    0    0    0    0    0     0
 [2,]    0   -1    1    0    0    0    0    0    0     0
 [3,]    0    0   -1    1    0    0    0    0    0     0
 [4,]    0    0    0   -1    1    0    0    0    0     0
 [5,]    0    0    0    0   -1    1    0    0    0     0
 [6,]    0    0    0    0    0   -1    1    0    0     0
 [7,]    0    0    0    0    0    0   -1    1    0     0
 [8,]    0    0    0    0    0    0    0   -1    1     0
 [9,]    0    0    0    0    0    0    0    0   -1     1
(P2 <- diff(diag(10), differences=2))
     [,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] [,10]
[1,]    1   -2    1    0    0    0    0    0    0     0
[2,]    0    1   -2    1    0    0    0    0    0     0
[3,]    0    0    1   -2    1    0    0    0    0     0
[4,]    0    0    0    1   -2    1    0    0    0     0
[5,]    0    0    0    0    1   -2    1    0    0     0
[6,]    0    0    0    0    0    1   -2    1    0     0
[7,]    0    0    0    0    0    0    1   -2    1     0
[8,]    0    0    0    0    0    0    0    1   -2     1

No differentiation, no integration. Lovely.

Back to adaptive smoothing…

Now we have our bits to construct the adaptive smoother, we can actually do that.

We can first think about decomposing the penalty as if it were a B-spline basis, so we have \(\mathbf{S} = \mathbf{P}^\intercal\mathbf{P}\). To weight this we could make a diagonal matrix with the weighting (or penalty) for each basis function in each element. Let’s call that \(\text{diag}(\boldsymbol{\lambda})\). We would then write: \[ \mathbf{S} = \mathbf{P}^\intercal\mathbf{P} = \mathbf{P}^\intercal \text{diag}(\boldsymbol{\lambda}) \mathbf{P} \] we can see that this recovers the regular single penalty when we set \(\mathbf{\lambda}\) to a single value, so we would have \(\text{diag}(\boldsymbol{\lambda})=\lambda \mathbf{I}\), so: \[ \mathbf{P}^\intercal \text{diag}(\boldsymbol{\lambda}) \mathbf{P} = \mathbf{P}^\intercal\lambda \mathbf{I}\mathbf{P} =\lambda \mathbf{P}^\intercal\mathbf{I}\mathbf{P} =\lambda \mathbf{P}^\intercal\mathbf{P}. \]

Our aim is to make the smoothing parameter into a function that is smooth over the covariate. Fortunately we already have a tool for making smooth functions: splines. So via basis expansion: \[\begin{equation} \boldsymbol{\lambda} = \mathbf{B}\boldsymbol{\gamma} \end{equation}\] where \(\mathbf{B}\) is the design matrix for the smoothing parameter (made of, you guess it, B-splines) and \(\boldsymbol{\gamma}\) are the associated parameters. We’ll call this our penalty basis. Let the number of basis functions/knots used for \(\boldsymbol{\lambda}\) be \(k_\lambda\) (hence the number of columns in \(\mathbf{B}\)).

By the local property of the B-spline basis, we know that the columns of \(\mathbf{B}\) will have non-zero entries around a given knot, then be zero elsewhere (assuming that \(\mathbf{B}\) is evaluated over a sequence of evenly spaced points along the covariate). We can see this in Figure 5.

# knot locations
nk <- 10
nd <- 100
knts <- seq(-0.5, 1.5, length.out=nk)
# grid for evaluation
xx <- seq(0, 1, length.out=nd)

#bspline <- function(x,k,i,m=2){
XX <- expand.grid(xx = xx,
                  knts = knts[2:6])
XX$p <- unlist(lapply(2:6, bspline, x=xx, k=knts, m=2))

ggplot(XX) +
  geom_tile(aes(x=knts, y=xx, fill=p)) +
  scale_y_reverse() +
  scale_fill_gradient(low="#fff", high="#ff0000") +
  coord_equal() +
  theme_void() +
  theme(legend.position="none")

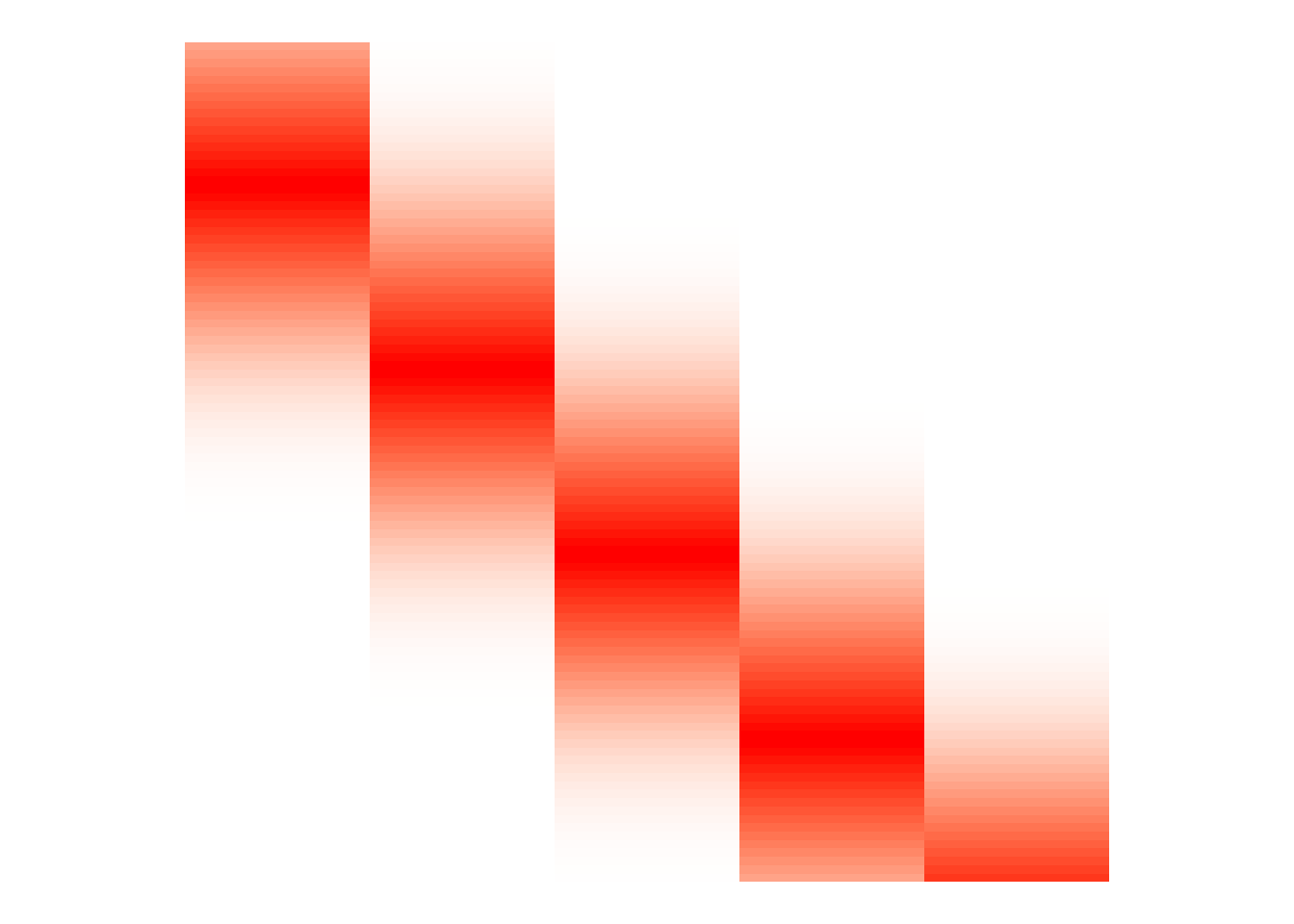

Figure 5: Visualisation of a B-spline basis design matrix.

We can show that \(\text{diag}(\boldsymbol{\lambda}) = \text{diag}(\mathbf{B}\boldsymbol{\gamma}) = \sum_j \boldsymbol{\gamma}_j \text{diag}(\mathbf{B}_{.j})\) with basic linear algebra.4 So we can now write: \[\begin{equation*} \boldsymbol{\beta}^\intercal \mathbf{P}^\intercal \text{diag}(\boldsymbol{\lambda}) \mathbf{P} \boldsymbol{\beta} = \boldsymbol{\beta}^\intercal \mathbf{P}^\intercal \text{diag}(\mathbf{B}\boldsymbol{\gamma}) \mathbf{P} \boldsymbol{\beta} = \sum_j \boldsymbol{\gamma}_j \boldsymbol{\beta}^\intercal \mathbf{P}^\intercal \text{diag}(\mathbf{B}_{.j}) \mathbf{P} \boldsymbol{\beta} \end{equation*}\] Finally, let \(\mathbf{S}_j = \mathbf{P}^\intercal \text{diag}(\mathbf{B}_{.j}) \mathbf{P}\), we have that our penalty is: \[ \sum_j \gamma_j \boldsymbol{\beta}^\intercal \mathbf{S}_j \boldsymbol{\beta}, \] which is exactly the same form as \(\eqref{multpen}\) but with the smoothing parameters \(\gamma_j\) being the coefficients for our penalty basis.

mgcv can only really5 use one kind of penalty and that’s the quadratic form we have in \(\eqref{multpen}\). So, its’ rather nice that we can work our adaptive penalty into this form. That means we can use all the usual tools in mgcv and not worry about extra fitting stuff.

Note that there is no penalty attached to \(\boldsymbol{\lambda}\)’s parameters \(\boldsymbol{\gamma}\) themselves we just have a continuous function, not any control on how wiggly it can be (though the size of \(k_\lambda\) will constrain this to some extent).

Adaptive smoothing in practice

Okay, with the maths out of the way, we can go back to our “motorcycle”6 dataset.

Given the above hoops, the setup of adaptive smooths in mgcv is very simple. We just need to set the basis to "ad" and we’re good to go:

b_ad <- gam(accel ~ s(times, bs="ad"), data=mcycle)

(plot_mpreds(b) + ggtitle("Thin-plate regression splines")) +
(plot_mpreds(b_ad) + ggtitle("Adaptive smoothing via P-splines"))

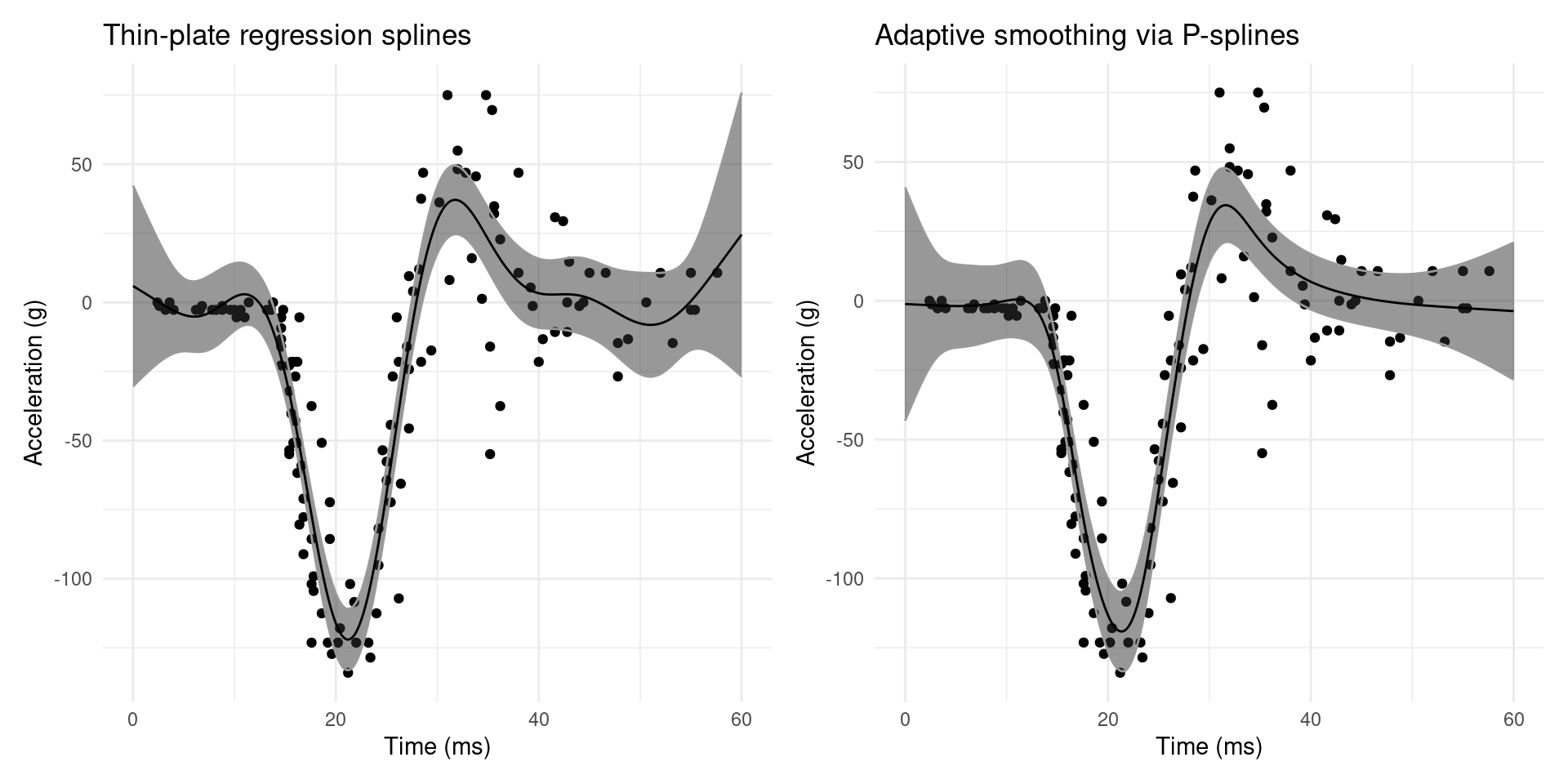

Figure 6: Comparison of thin-plate splines (left) and adaptive smoothing (right) for the motorcycle dataset.

Figure 6 shows a comparison of adaptive smoothing and our initial try with thin-plate regression splines. Not only does the adaptive smoother capture the flatness in either extreme of the data, we also have narrower confidence intervals.

It’s worth having a quick look at the structure that we’re using to represent this in mgcv. First off, we note that we use 5 penalty matrices to fit the model:

length(b_ad$smooth[[1]]$S)
[1] 5

We can visualize these matrices simply as follows:

library(dplyr)

Splot <- lapply(b_ad$smooth[[1]]$S, array2DF, base=list(as.character(1:39)))
Splot <- do.call(rbind, Splot) %>%
  mutate(arow=as.numeric(Var1),
         acol=as.numeric(Var2),
         amat=rep(1:length(b_ad$smooth[[1]]$S),
                  each=nrow(b_ad$smooth[[1]]$S[[1]])*
                       nrow(b_ad$smooth[[1]]$S[[1]])),
         S=Value) %>%
  select(arow, acol, amat, S)


ggplot(Splot) +
  geom_tile(aes(x=acol, y=arow, fill=S)) +
  scale_y_reverse() +
  facet_wrap(~amat, nrow=1) +
  scale_fill_gradient2() +
  coord_equal() +
  labs(fill="Penalty") +
  theme_void() +
  theme(legend.position="bottom")

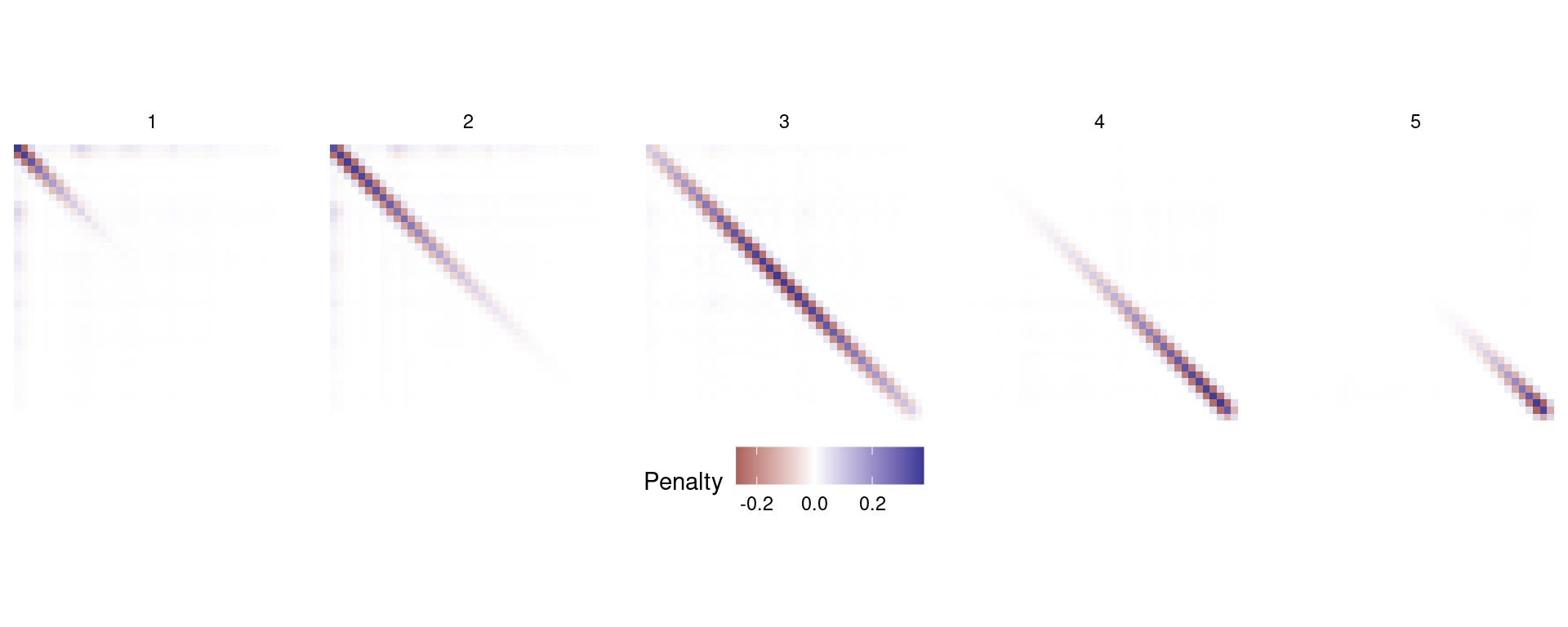

The penalty matrices used to fit our model b_ad. Note the spatial structure as we move left to right. Most values are zero but the leading diagonal advances down the matrix, showing where the penalty acts over the spline basis.

More options

There are a few things that we can change in the adaptive smoothing specification.

  • Basis: we can use a fairly restricted set of basis functions can be used for the smoother (P-splines "ps", cyclic P-splines "cp", cyclic cubic splines "cc" or cubic splines "cr"), the penalty basis can only be a P-spline or cyclic P-spline. These are set via the xt=list(...) option to s(), specifically the $bs element, as a character vector (e.g., xt=list(bs=c("cp", "cp")) for cyclic smoother and penalty).
  • Penalty basis size: this is controlled by the m argument to s(). Note that this can’t be too big, as the model will get slow very quickly. It’s best to start small and increase slowly. Due to the local nature of B-splines, we are estimating the \(\gamma_j\) parameters from a much reduced subset of data. From the help file “setting m=10 for a univariate smooth of 200 data is rather like estimating 10 smoothing parameters, each from a data series of length 20.”

Note that adaptive smoothers can’t be used with gamm or as marginals in tensor product smooths. We can make 2-dimensional version of these smoothers (and fit that in mgcv) for cases where we have changing smoothness in space.

Other approaches and further reading

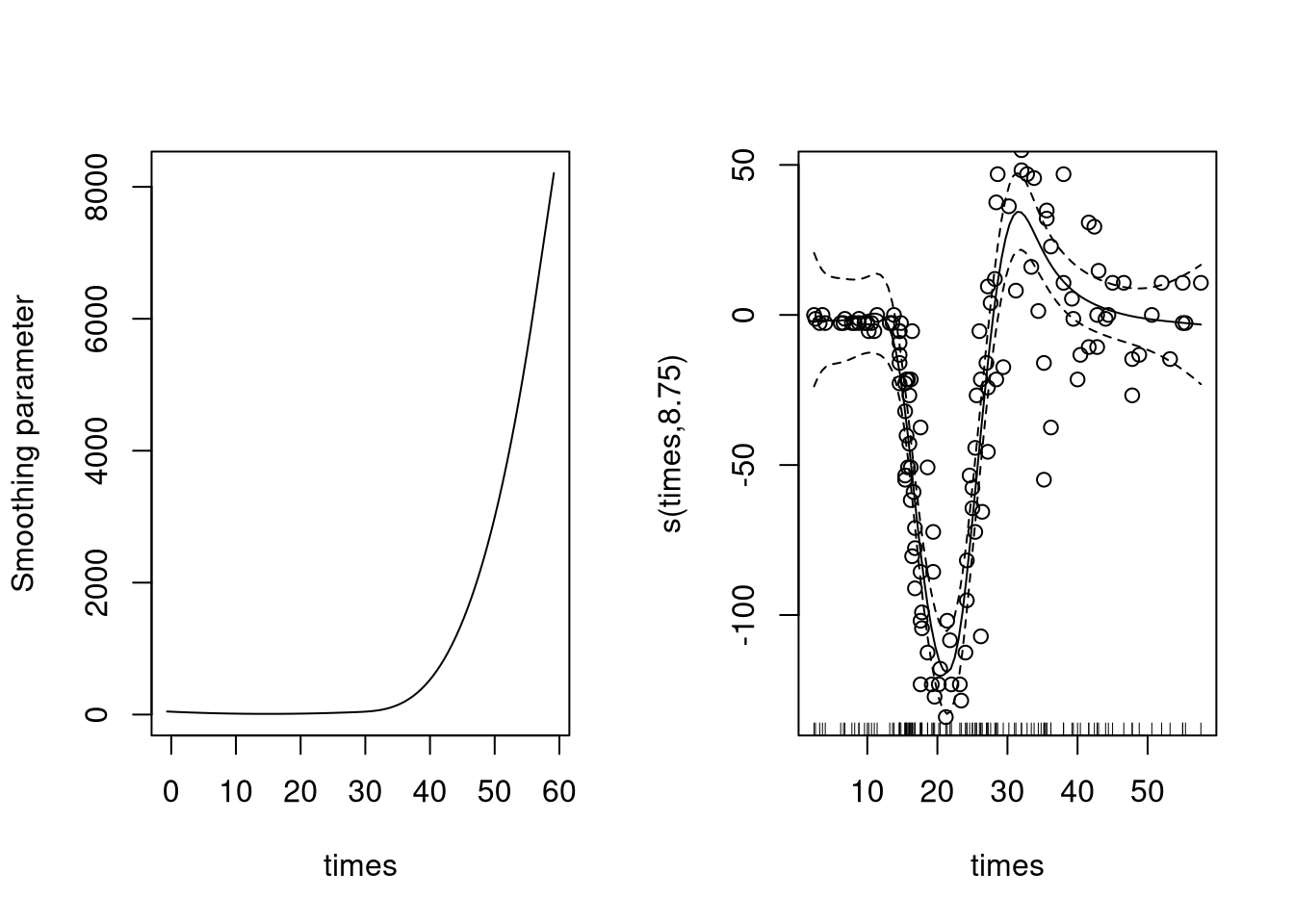

This approach is neat because it fits into the general mgcv scheme of fitting GAMs. That means we get to use all the other tools that are in mgcv. That said, lots of people have thought about this problem.

An early approach to this problem is suggested in Ruppert and Carroll (2000). Their approach is similar in some ways, but doesn’t use the nice properties of P-splines (for example they model the penalty basis on the \(\log_e\) scale, which seems weird given the B-spline basis functions are positive). It feels a bit less elegant that what I describe above. Baladandayuthapani et al. (2005) and Crainiceanu et al. (2007) build on this approach further. Lang and Brezger (2004) and Jullion and Lambert (2007) provide fully Bayesian approaches but again don’t quite get to the elegance of the above. Yue et al. (2014) propose a much more fancy version, again Bayesian, applying the SPDE approach in INLA. I need to think about that last paper more, but the approach involves things like formulating stochastic differential equations and words like “Galerkin approximation” so it will have to wait until a future date.

Thanks

Time to think about this was partly funded by BioSS “topic group”: “what we talk about when we talk about random effects”. Thanks also to John Addy for extremely useful discussions.

References

Baladandayuthapani, V., Mallick, B. K. and Carroll, R. J. (2005) Spatially Adaptive Bayesian Penalized Regression Splines (P-splines). Journal of Computational and Graphical Statistics, 14, 378–394. DOI: 10.1198/106186005X47345.
Crainiceanu, C. M., Ruppert, D., Carroll, R. J., et al. (2007) Spatially Adaptive Bayesian Penalized Splines With Heteroscedastic Errors. Journal of Computational and Graphical Statistics, 16, 265–288. DOI: 10.1198/106186007X208768.
DeBoor, C. (1978) A Practical Guide to Splines. Springer New York.
Eilers, P. H. and Marx, B. D. (1996) Flexible smoothing with B-splines and penalties. Statistical science, 11, 89–102.
Jullion, A. and Lambert, P. (2007) Robust specification of the roughness penalty prior distribution in spatially adaptive Bayesian P-splines models. Computational Statistics & Data Analysis, 51, 2542–2558. DOI: 10.1016/j.csda.2006.09.027.
Lang, S. and Brezger, A. (2004) Bayesian P-Splines. Journal of Computational and Graphical Statistics, 13, 183–212. DOI: 10.1198/1061860043010.
Ruppert, D. and Carroll, R. J. (2000) Spatially-adaptive Penalties for Spline Fitting. Australian & New Zealand Journal of Statistics, 42, 205–223. DOI: 10.1111/1467-842X.00119.
Schmidt, G., Mattern, R. and Schüler, F. (1981) Biomechanical investigation to determine physical and traumatological differentiation criteria for the maximum load capacity of head and vertebral column with and without protective helmet under the effects of impact. EEC Research Program on Biomechanics of Impacts, Final report, Phase III, Project G, 5.
Silverman, B. W. (1985) Some Aspects of the Spline Smoothing Approach to Non-Parametric Regression Curve Fitting. Journal of the Royal Statistical Society. Series B (Methodological), 47, 1–52.
Wood, S. N. (2017a) Generalized Additive Models. An Introduction with R. 2nd ed. Texts in Statistical Science. CRC Press.
Wood, S. N. (2017b) P-splines with derivative based penalties and tensor product smoothing of unevenly distributed data. Statistics and Computing, 27, 985–989. DOI: w.
Yue, Y. R., Simpson, D., Lindgren, F., et al. (2014) Bayesian Adaptive Smoothing Splines Using Stochastic Differential Equations. Bayesian Analysis, 9, 397–424. DOI: 10.1214/13-BA866.

Footnotes

  1. Though this report doesn’t appear to be findable, one can find a rather gruesome NATO conference proceedings from around the same time by the same authors which appears to demonstrate the same ideas here↩︎

  2. Different authors call these different things. Here I’m saying “P-splines” are “B-splines with a difference-based penalty”. Other people will say other things.↩︎

  3. This is really just because we’re going to directly penalize the coefficient values rather than look at the integral of the basis functions over the range of the data. There is some mention in the literature (e.g., the mgcv FAQ question 10) that indicates that this might be the case.↩︎

  4. The first element of the column vector \(\mathbf{B}\boldsymbol{\gamma}\) is \(\mathbf{B}_{11}\lambda_1 +\mathbf{B}_{12}\lambda_2 + \ldots = \sum_j \lambda_j \mathbf{B}_{1j}\) and so on for the second row etc.↩︎

  5. There is a more complicated way but I’ll save that for another article.↩︎

  6. Read “traumatic head injury”↩︎
